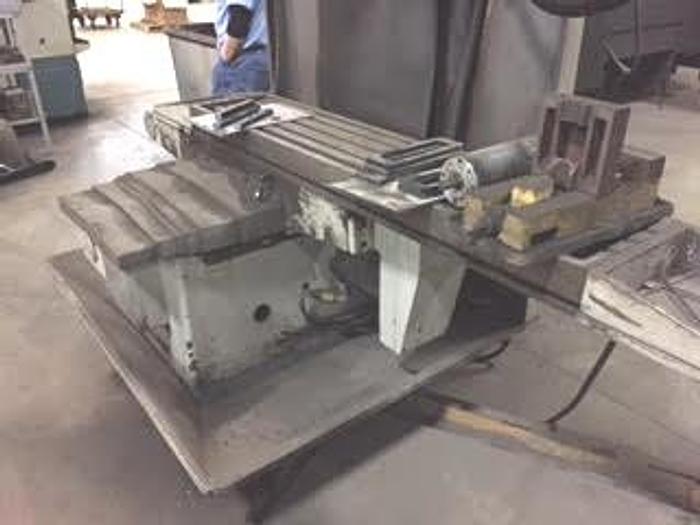

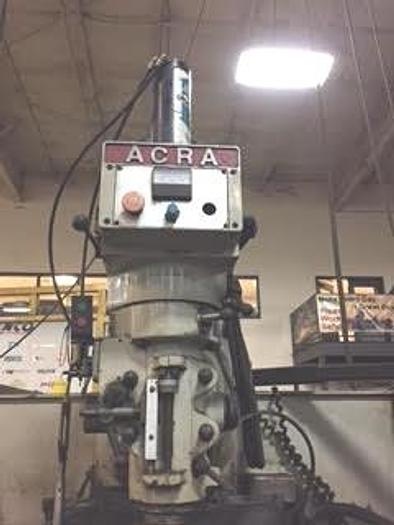

Removing the space has resolved that issue quite a relief.Ī fairly recent enquiry from fishtruk about a post for his Anilam 1100 had a reply that suggested going to the Post Library. So I had a closer look last night, I had been using the Generic Anilam Conversational post version 41369, but I found the translation at var xOutput = createVariable(, xyzFormat) was putting a space betwen the axis and value, and that's what the 1100 software didn't like. I have tried creating a CAM output files for the mill, but I seemed to have particular issues loading lines for curves Arc Cw etc., it just missed them completely. As it works well in DRO mode, I've made do with that. I bought a milling machine with Anilam 1100 software, but have resolved not had time to sort out using the cnc mode until now. I've been following the thread on Anilam conversational posts over the last year, and I'm very grateful that you shared your work through this forum.
I've tested what I can, if you spot any problems let me know. When I have time I'll put a setting in properties to make easier changes.Ĭhanges in post are commented with "HT" and date. Set start and return to same height and ZDepth to cycle.bottomĪdded quillDRO to properties if you have 3 axis and a coupled DRO on quill set to true and program will pause so you can retract quill before move to Z home.Ĭhanged M code output so it outputs "Mcode"Ĭommented out RPM output as it's set in the tool table on the machine. Fixed chip breaking and deep drilling to correct format. No dwell in drill cycles changed to use boring cycle. XY coordinate are not on the same line as cycle set up, moved to next line. Added 2 new functions "writePlaneBlock()" & "writeMoveBlock()" to replace G-code with the correct Anilam words.įixed drill cycles. If 0 offset is used in the setup in HSM no offset is output so whatever offset the machine is set to wiil be used. Work offset 0 recalls the machine home, change so only 1 to 9 are output. IJK needed to be output as XCenter, YCenter and ZCenter.Īdded spiral work around to reduce code size. I've fixed a lot of errors in the Anilam post. siemens-840d error Danger of collision due to tool radius compensation 1Įdit updated attachment see latest post for changes.post-proccesor philips cnc 532 5 axis 1.
